Milling cutter FMPCM3050HS KORLOY
SKU
34000002
Availability:
On order
VAT will be added to the product price.
Milling cutter Future Mill
Future Mill series for mold making
- Stable clamping system enables stable machinning and productivity.
- Varied product line-up ensures wide application range.
- Optimal shape and grade with high hardness for hard to cut material machining.
Features
- Flat clearance face of insert prevents interference and revolution while machining.
- Optimal grades and chip breakers for various workpieces.
- Chip brealer - concave shape ensures wide chip poclet and lowers cutting temperature.
- Clearance face for preventing rotation - prevents rotation in machining, divides corners, prevents interference in high-feed machining, ensures stable clamping.
- Through-coolant system - superb chip evacuation, low cutting head esnures long tool life.
| Z | øD | øD2 | ød | a | b | E | F | ød1 | ød2 | ap | kg |
| 5 | 50 | 40 | 22 | 10.4 | 6.3 | 20 | 40 | 11 | 18 | 7 | 0.3 |

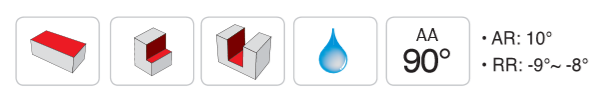

| Sub Application | Facing, Shouldering, Slotting |
|---|---|
| diameter | 50mm |
| number of teeth | 5 |
